16 layer PCB quick turn in 8 days

2019 05/14

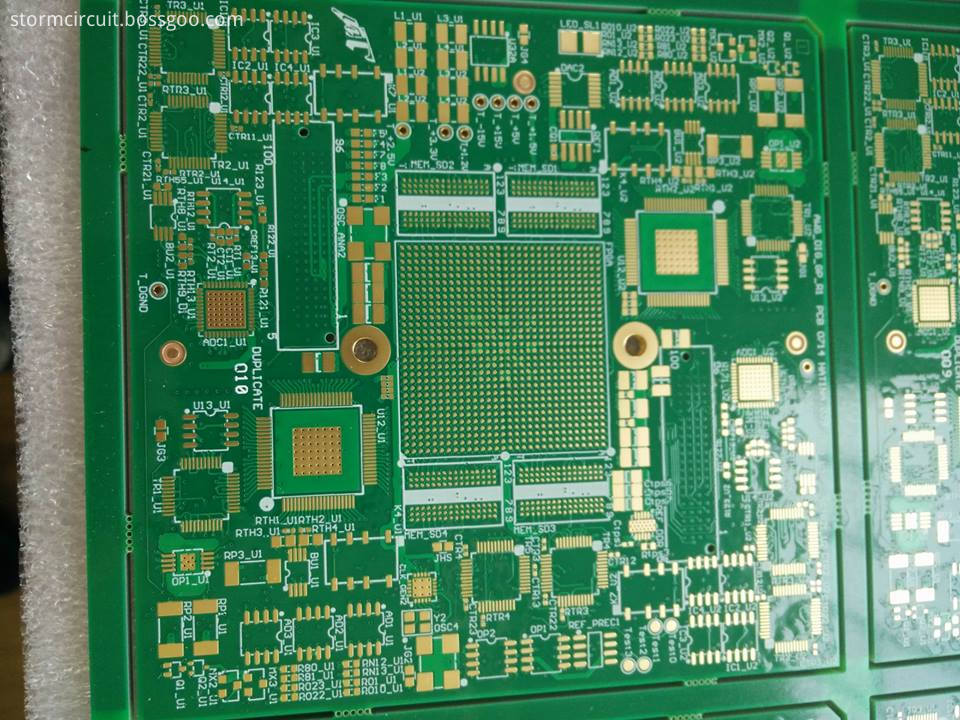

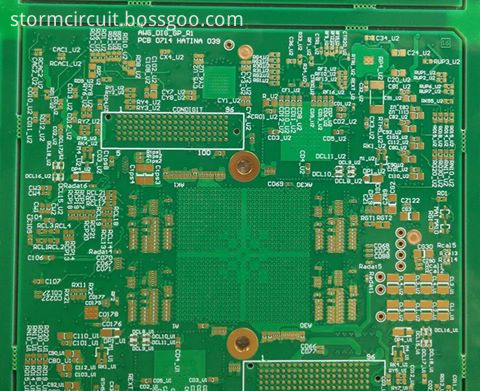

8 days to do this 16 layer board,but I think the time is acceptable,even we can do quicker. oh ,just ago.our production tole me another 20 layer board finished now,it cost the same time. Anyway,let me introduce this board.
Material:FR4,TG170 (ITE180).
Thickness: 2.76mm.
min hole: 0.2mm
min trace/space:0.11/0.11mm
200*300 mm per panel ,6 units/panel.
Immersion gold and press fit hole (tolerance 0.05mm)
it is a bit big for such complex board,we advise any one who design such boards to make the panels small. if many units ,X-outs are easy on the panel .
Are you designing some such complex boards? Try us.
