Copper Core PCB made by Storm Circuit

2018 04/18

Copper Core PCB is one type of MC (Metal Core) PCB.Most of MC PCB is Aluminum core.however,in some field Aluminum is not so good as copper. we need higher conductivity.

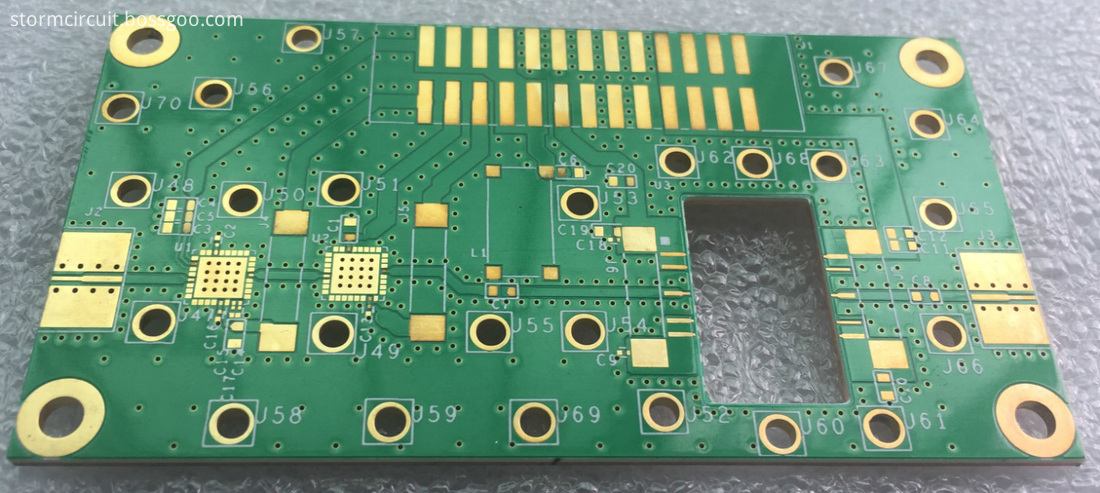

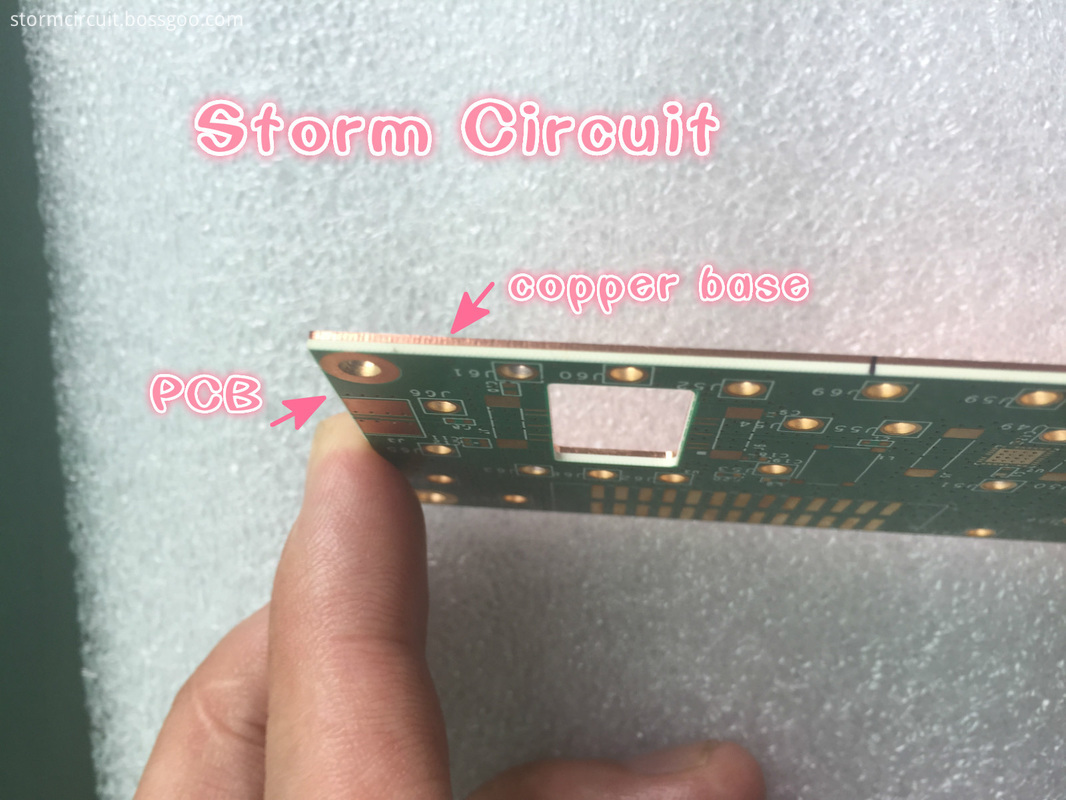

See below picture,you will see clearly how the copper core PCB looks like. one side is a normal PCB-solder mask,silkscreen ,gold or HAL.and the other side is full copper.

this PCB is 2.0mm,copper core,gold.conductivity 400w/m.k
